Notch (or Minus) Filters

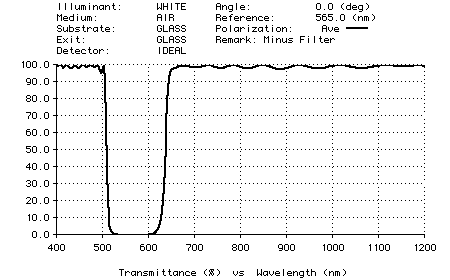

The graphic below shows the performance of a 34-layer notch filter.
|
Notch (or Minus) Filters |
|
A notch, or minus, filter requires that the transmittance be minimized in a
rejection band and maximized outside of that band. The rejection band is
usually narrow. This type of filter is one of the most difficult to design.
The graphic below shows the performance of a 34-layer notch filter.
|
|
